Dominate the Leaderboard: This Rig Means Business

Unleash your inner gaming beast with this guide to building a high-end PC rig featuring the mighty Intel Core i9-14900K and the NVIDIA GeForce RTX 4090. We delve into the essential components, explore expected performance in top-tier games, and provide a basic assembly guide. Dominate the leaderboard and experience gaming at its absolute finest!

Rishikesh

1/16/20254 min read

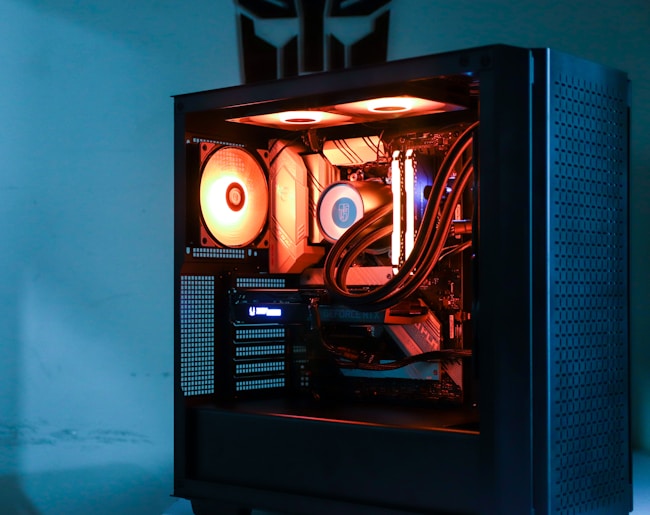

a computer tower with a fan
a computer tower with a fan

Introduction

Tired of stuttering frames and subpar visuals? Ready to conquer any game thrown your way? This guide will walk you through building a high-performance gaming PC rig designed to deliver maximum power and an immersive gaming experience. This isn't just a build; it's a statement of intent—to dominate the leaderboard and experience gaming at its absolute finest.

Rig Specs:

  • CPU:

    • Intel Core i9-14900KS:

      • Architecture: Raptor Lake Refresh

      • Socket: LGA1700

      • Cores: 24 (8 Performance Cores + 16 Efficient Cores)

      • Threads: 32

      • Base Clock Speed: 3.2 GHz

      • Max Turbo Frequency: 6.2 GHz (Thermal Velocity Boost)

      • L3 Cache: 36 MB

      • L2 Cache: 32 MB

      • Integrated Graphics: Intel UHD Graphics 770

      • TDP: 150W (Max TDP: 253W)

      • Memory Support: DDR5-5600, DDR4-3200

      • PCI Express Lanes: 20 (PCIe 5.0)

      • Price (approx.): £675

        CPU Link:https://amzn.to/4al0LN3

  • CPU Cooler:

    • Corsair iCUE H150i Elite Capellix 360mm AIO Liquid Cooler:

      • 3x 120mm ARGB fans

      • 360mm radiator

      • 360-degree rotation

      • Zero RPM mode

      • Compatible with Intel and AMD sockets

      • Price (approx.): £200

        CPU Cooler Link: https://amzn.to/4hjHttr

  • Motherboard:

    • ASUS ROG Maximus Z790 Hero:

      • Intel Z790 chipset

      • 12+2 power stages

      • 4 x DDR5 memory slots (up to 128GB)

      • 2 x PCIe 5.0 x16 slots

      • 1 x PCIe 4.0 x16 slot

      • 1 x PCIe 4.0 x4 slot

      • 1 x M.2 PCIe 5.0 SSD slot

      • Wi-Fi 6E

      • Bluetooth 5.3

      • Onboard audio

      • Price (approx.): £500

        Motherboard Link:https://amzn.to/3CrycRj

  • GPU:

    • NVIDIA GeForce RTX 4090:

      • 24,384 CUDA cores

      • 24 GB GDDR6 memory

      • 256-bit memory interface

      • Boost clock speed up to 2.55 GHz

      • 450W TGP

      • Price (approx.): £1500 - £2000

        GPU Link:https://amzn.to/3Wmyqju

  • RAM:

    • Corsair Vengeance RGB Pro 32GB (2x16GB) DDR5 6000MHz:

      • 32GB total capacity

      • 16GB modules

      • DDR5 memory technology

      • 6000MHz frequency

      • CL32-40-40-76 timings

      • RGB lighting

      • Price (approx.): £150

        RAM Link:https://amzn.to/3DYTPsJ

  • Storage:

    • 2TB Samsung 990 Pro PCIe 4.0 NVMe M.2 SSD:

      • 2TB capacity

      • PCIe 4.0 interface

      • NVMe SSD

      • Up to 7900 MB/s read speed

      • Up to 7300 MB/s write speed

      • Price (approx.): £150

        Stoarage Link:https://amzn.to/4h0vwJA

  • Case:

    • Lian Li O11 Dynamic EVO:

      • Mid-tower ATX case

      • Tempered glass side panel

      • 7 ARGB fans

      • 6 addressable RGB LED strips

      • Supports up to 9 fans and 3 radiators

      • Ample space for custom cable management

      • Price (approx.): £150

        Case Link:https://amzn.to/4apEU72

  • PSU:

    • Corsair RM1000x 1000W 80+ Gold Fully Modular:

      • 1000W power supply

      • 80+ Gold-certified efficiency

      • Fully modular cables

      • 10-year warranty

      • Price (approx.): £180

        PSU Link:https://amzn.to/3EbQsP6

  • Estimated Total Cost:

    • £2880 - £3330

Dominating the Game: Expected Performance

Prepare to be blown away by the performance of this rig:

  • Cyberpunk 2077:

    • Ultra (Ray Tracing On): 80-120 FPS

    • High (Ray Tracing On): 120-160 FPS

    • Medium (Ray Tracing Off): 160+ FPS

  • Horizon Zero Dawn:

    • Ultra: 120-160 FPS

    • High: 140+ FPS

    • Medium: 180+ FPS

  • Microsoft Flight Simulator:

    • Ultra: 60-90 FPS

    • High: 90-120 FPS

    • Medium: 120-140 FPS

  • Call of Duty: Modern Warfare II:

    • Ultra (Ray Tracing On): 100-140 FPS

    • High (Ray Tracing On): 140-180 FPS

    • Medium (Ray Tracing Off): 180+ FPS

  • Red Dead Redemption 2:

    • Ultra: 90-120 FPS

    • High: 120-160 FPS

    • Medium: 160+ FPS

  • Starfield: (Estimated)

    • Ultra (Ray Tracing On): 70-100 FPS

    • High (Ray Tracing On): 100-140 FPS

    • Medium (Ray Tracing Off): 140+ FPS

  • The Witcher 3: Wild Hunt (Ray Tracing On):

    • Ultra (Ray Tracing On): 80-120 FPS

    • High (Ray Tracing On): 120-160 FPS

    • Medium (Ray Tracing Off): 160+ FPS

Note: Actual FPS may vary depending on specific game settings, in-game conditions, driver optimizations, and individual system configurations.

Building Your Dream Machine

Ready to assemble this beast? Here's a basic guide to get you started:

  1. Prepare your workspace: Ensure a clean, static-free environment.

  2. Install the CPU:

    • Carefully align the CPU with the socket on the motherboard and gently press down.

    • Secure the CPU with the lever provided.

  3. Install the CPU Cooler:

    • Apply thermal paste to the top of the CPU according to the cooler's instructions.

    • Mount the cooler onto the CPU and secure it according to the manufacturer's guide.

  4. Install RAM:

    • Open the RAM slots on the motherboard.

    • Gently insert each RAM module into the corresponding slot, ensuring proper alignment.

    • Close the slots firmly.

  5. Install the motherboard:

    • Place the motherboard into the case, aligning the standoffs with the holes on the motherboard.

    • Secure the motherboard to the case with screws.

  6. Install the GPU:

    • Insert the GPU into the appropriate PCIe slot on the motherboard.

    • Secure the GPU with the provided screws.

  7. Install Storage:

    • Install the M.2 SSD into the appropriate slot on the motherboard.

  8. Install the power supply:

    • Mount the PSU in the designated area of the case.

    • Connect the main power cable from the PSU to the motherboard.

  9. Connect Cables:

    • Connect all necessary cables, including:

      • Power cables from the PSU to all components (CPU, GPU, motherboard, fans)

      • Data cables from the motherboard to the storage drives

      • Front panel connectors (power, reset, USB, audio)

  10. Install Case Fans:

    • Mount case fans in the designated locations within the case.

    • Connect the fans to the motherboard or a fan hub.

  11. Connect Peripherals:

    • Connect your keyboard, mouse, and monitor to the appropriate ports on the rear I/O panel of the motherboard.

Important Notes:

  • This is a general guide. Always refer to your specific motherboard, CPU, and component manuals for detailed instructions.

  • Ground yourself by touching a grounded metal object before handling any components to prevent static discharge.

  • Take your time and work carefully to avoid damaging any components.

  • If you encounter any difficulties, refer to online tutorials or seek assistance from a qualified technician.

Conclusion

This isn't just a PC; it's a gateway to an unparalleled gaming experience. With its cutting-edge components and optimized performance, this rig will empower you to conquer any challenge, dominate any leaderboard, and experience gaming at its absolute finest. Happy gaming!

Disclaimer:

  • Prices are approximate and subject to change.

  • Estimated FPS values are based on current hardware and may vary depending on future game updates, optimizations, and individual system
